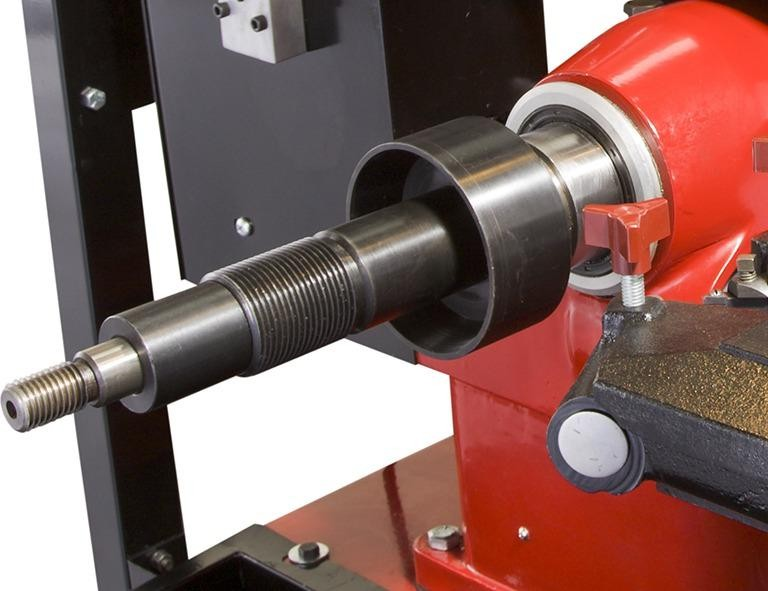

Brake Drum and Disc C9335
Features:
1. For car brake drum / plate repair
2. Max. 350mm diameter
Specification:
C9335 Brake Drum Adjustment&Disc Lathe Machine for Truck/Bus
C9335 is suitable for car brake drum and disc。
Main Specifications | Unit | C9365 | C9350A | C9335 | DCT48 | DCP32A-K | |
range of processing | brake
drum |
mm | 350-650 | 152-500 | 180-350 | 350-480 | |
brake
plate |
mm | 180-400 | 180-330 | 180-350 | 350-480 | ≤400 | |
rotating speed of
workpiece |
rpm | 30,49,88 | 70,80,11
8 |
90 | 7,35 | 90 | |
Max Travel of Tool | mm | 256 | 175 | 100 | 230 | 100 | |
Overall Dimensions(L*W*H
) |
mm | 1750*800*81
5 |
695*565*63
5 |
1100*624*950 | |||
Packing Dimensions(L*W*H
) |
mm | 1165*956*91
5 |
750*710*73
0 |
1250*810*130
0 |
450*950*65
0 |
||
N.W/G.W | kg | 650/800 | 180 | 200/260 | 175/225 | 40/55 | |
Motor Power (KW) | kw | 1.1 | 0.75 | 0.75 | 0.75 | 0.2 |
