Features
|

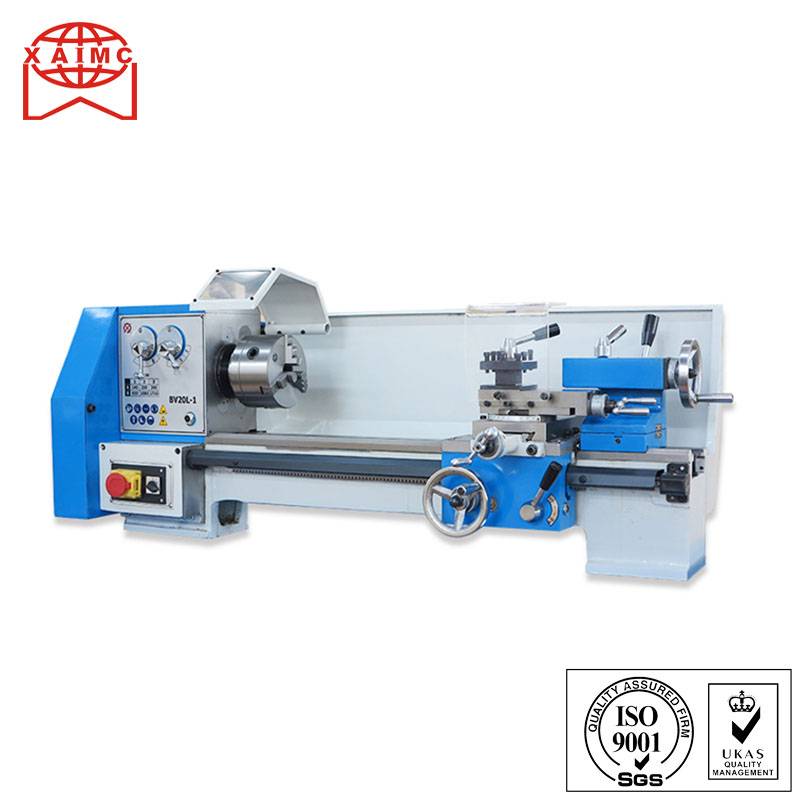

Specifications for BV20-1
|
|
|
Swing Over Bed
|
220mm
|
|
Distance Between Centers
|
350/520mm
|
|
Swing over cross slide
|
120mm
|
|
Spindle Bore
|
20mm
|
|
Spindle Taper
|
MT3
|
|
Step of Spindle Speeds
|
6
|
|
Range Of Spindle Speed
|
140-1710r.p.m
|
|
Range Of Of Metric Threads
|
11 kinds/ 0.4-3mm
|
|
Range Of Imperial Threads
|
11 kinds/8-28 1/n”
|
|
Tailstock Quill Travel
|
45mm
|
|
Cross Travel
|
115mm
|
|
Compound Travel
|
63mm
|
|
Taper In Tailstock Spindle
|
MT2
|
|
Main Motor
|
750W
|
|
Packing Size
|
1254×575×600mm
|
|
N.W/G.W
|
125/140kgs
|
