Full Automatic Pipe and Tube Bending Machine

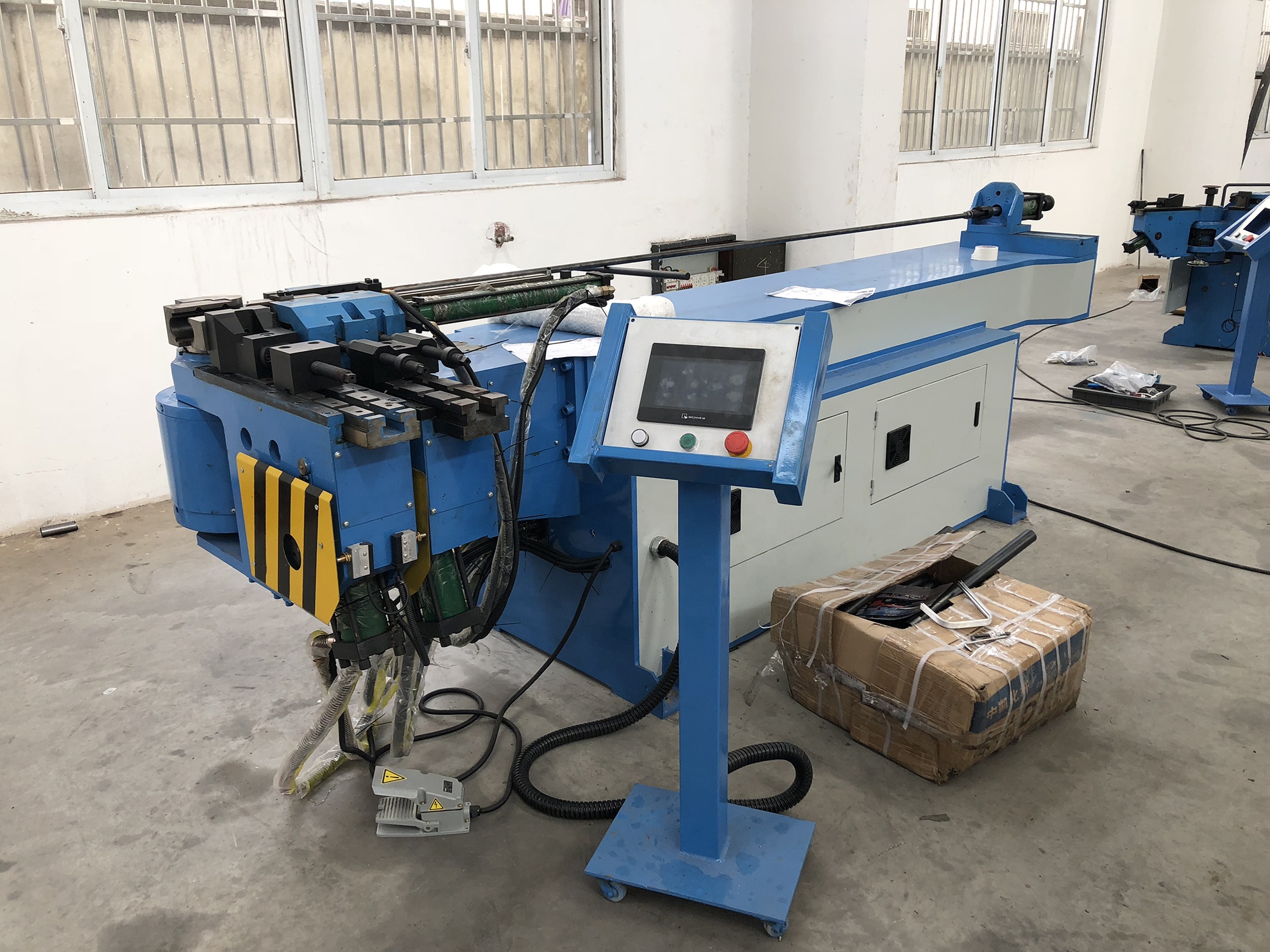

Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (B) & Rotation (C) in a complete automatic cycle.
Ranging from 10mm up to 220mm OD these machines are suited for use in a wide range of pipe manufacturing sectors and industries. Available in different versions, there’s all three axis are automatic in a single stack machine.There’s also the option to add push bending function, left and right bending function, more stacks,and so on.
The series comes equipped with easy-to-operate touchscreen controls, or with the latest user-friendly 3D bending software. This stores tooling configuration, allows spring-back compensation, and boasts anti-collision technology, amongst other features.
Options
*IPC Controlling
* Double/Triple/Quadruple Stack (Different Radius on one pipe bending)
* Pipe Push Bending Function(Big Radius)
* Extra Mandrel Length
* Left&Right Head Bending
Pipe bending Macine Push bending for large radius (Optional)
Tube bending Machine multi-layer type (Optional)
|
Model
|
38CNC-2A-1S
|
50CNC-2A-1S
|
63CNC-2A-1S
|
76CNC-2A-1S
|
|
Max Capacity
|
￠38.1 (1.5”)×2mm
|
￠50.8 (2”)×2mm
|
￠63.5 (2.5”)×4mm
|
￠76.2 (3”)×5mm
|
|
Bending Degree
|
0-190°
|
0-190°
|
0-190°
|
0-190°
|
|
Bending Radius
|
10-200mm (for machine)
|
15-250mm (for machine)
|
20-300mm (for machine)
|
25-350mm (for machine)
|
|
Min Bending Radius
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
|
Mandrel Length
|
2300mm (can be customized)
|
2500mm(can be customized)
|
3000mm(can be customized)
|
3200mm(can be customized)
|
|
Max Bending Speed
|
90°/s
|
65°/s
|
60°/s
|
45°/s
|
|
Bending Accuracy
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Motor Power
|
4 Kw
|
5.5 Kw
|
7.5 Kw
|
7.5 Kw
|
|
Model
|
89CNC-2A-1S
|
114CNC-2A-1S
|
129CNC-2A-1S
|
168CNC-2A-1S
|
|
Max Capcity
|
￠89 (3.5”)×8mm
|
￠114 (4.5”)×8mm
|
￠129(5”)×12mm
|
￠168(6.5”)×16mm
|
|
Bending Degree
|
0-190°
|
0-190°
|
0-190°
|
0-190°
|
|
Bending Radius
|
30-450mm (for machine)
|
40-550mm (for machine)
|
50-650mm (for machine)
|
60-850mm (for machine)
|
|
Mini Bending Radius
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
R≥1.5D (for pipe)
|
|
Mandrel Length
|
3800mm(can be customized)
|
4500mm(can be customized)
|
4600mm(can be customized)
|
6500mm(can be customized)
|
|
Max Bending Speed
|
40°/s
|
25°/s
|
20°/s
|
10°/s
|
|
Bending Accuracy
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Motor Power
|
11 Kw
|
15 Kw
|
18.5 Kw
|
22 Kw
|
Tool & Accessories
STANDARD MATERIAL: 45# STEEL
Optional Materials:
* Ampco Bronze- Mandrel&Wiper die for Stainless Steel Pipe
* Nylon- Bending die,Clampe die&Pressure die for Aluminum Pipe
* Cr 12-For other pipe material
* Nylon- Bending die,Clampe die&Pressure die for Aluminum Pipe
* Cr 12-For other pipe material
