Con-rod Bushing Boring Machine T8216

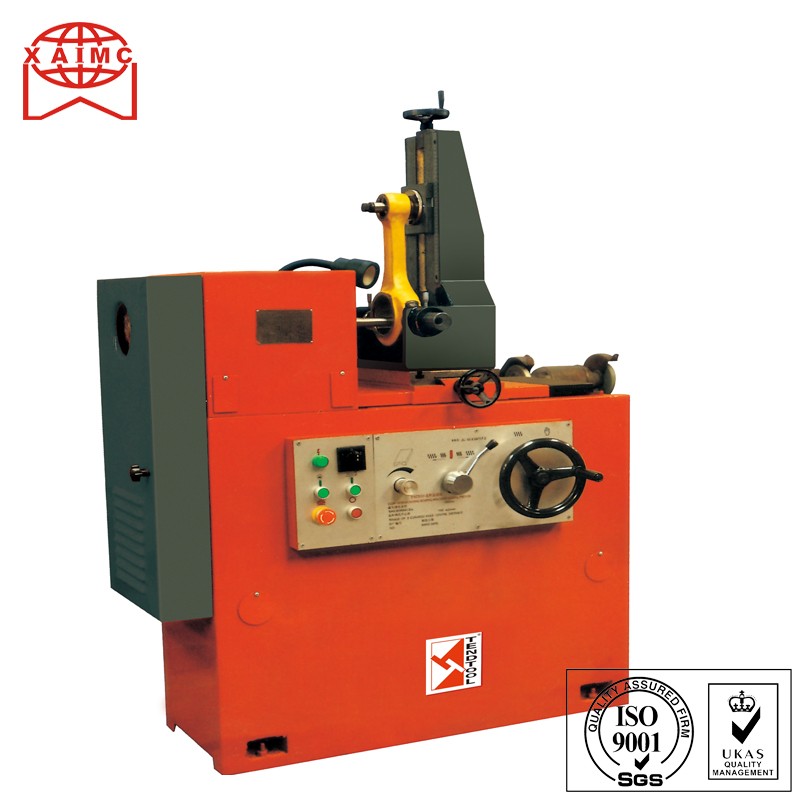

♥The con-rod bushing boring machine model T8210D(can be used with cylinder body boring machine model T8115) This machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.
The machine is mainly used in boring rod bushing hole(rod bushing and copper bush) of diesel and gasoline engine of automobiles
and tractors. In case of necessity, rod bushing seat hole can be also completed after changing the corresponding clamps. Besides,
it has the accessories for centering sectifying tool, boring tool and boring micro-adjustment etc.
♥This machine has good performance,better structure,easy operation and high accuracy and meet customer’s demand
Unit
|
T8216
|
T8210D
|
T8210A
|
Bored hold diameter
|
mm
|
Φ15-Φ150
|
Φ16-Φ100
|
Distance of rod 2-hole centers
|
mm
|
85-600
|
100-425
|
work table travel
|
mm
|
320
|
220
|
Main shaft speed
|
rpm
|
140,215,355,550,785,1200
|
350,530,780, 1180
|
Boring rod diameter
|
mm
|
14,29,38,59
|
14,16,24,40
|
Main motor power
|
KW
|
0.85/1.1
|
0.65/0.85
|
Table driving
|
|
Hydraulic
|
Hydraulic
|
Weight
|
kg
|
920
|
800
|
Dimensions
|
mm
|
130*86*176
|
1150*570*1710
|
