MACHINE SPECIFICATIONS
- Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)
- Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.
FEATURES & BENEFITS
- Minimum stock removal, usually less than .003″ (.076 mm) off the caps compared to as much as .010″ (.254 mm) with boring
- Maximum precision, corrects distortion caused by warpage and cap stretch
- Meets or exceeds original factory accuracy for alignment, roundness and size
- Fast, easy setup
- Ease of operation, no special training required
- Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
- Lifetime application service with every machine purchase
Hone Unit Selection
| COMPLETE HONE UNIT | REPLACEMENT STONES & SHOES | |||||||
| HONE UNIT | APPROX. SHIP. WEIGHT | DIAMETER RANGE | COMMENTS | STONES (5 per Box)
Ship Wt. 1 1/4lbs (0,57 kg) per Box |
SHOES (5 per Box)
Ship Wt. 2 lbs (0,9 kg) per Box |
|||
| lbs. | kg | inches | millimeters | RY24-J49 | RG-D | |||
| 10RY-1800F | 34 | 15,4 | 1.800 – 2.100 | 46 – 54 | Hone Unit includes
1 set of 10 stones and 20 shoes |
RY24-J49 | RG-D | |
| 10RY-2100F | 45 | 20,4 | 2.100 – 2.400 | 54 – 61 | RY24-J49 | RG-D | ||
| 10RY-2400G | 40 | 18,1 | 2.400 – 2.700 | 61 – 69 | RY24-J49 | RG-D | ||
| 10RY-2700G | 45 | 20,4 | 2.700 – 3.000 | 69 – 77 | RY24-J49 | RG-D | ||
| 10RY-3000H | 50 | 22,6 | 3.000 – 3.500 | 77 – 89 | RY24-J49 | RG-D | ||
| 10RY-4500H | 60 | 27,2 | 4.500 – 5.000 | 115 – 127 | RY24-J49 | RG-D | ||
| 15RY-3500H | 85 | 38,5 | 3.500 – 4.000 | 89 – 102 | Hone Unit includes
1 set of 15 stones and 30 shoes |
RY24-J49 | RG-D | |
| 15RY-4000H | 105 | 47,6 | 4.000 – 4.500 | 102 – 115 | RY24-J49 | RG-D | ||
| 15RY-4500H | 120 | 54,4 | 4.500 – 5.000 | 115 – 127 | RY24-J49 | RG-D | ||
| 10RY-5000H | 70.5 | 32,0 | 5.000 – 5.500 | 127 – 140 | Hone Unit includes
1 set of 10 stones and 20 shoes |
RY24-J49 | RG-D | |
| 10RY-5500H | 80.5 | 36,6 | 5.500 – 6.000 | 140 – 152 | RY24-J49 | RG-D | ||
| 10RY-6000H | 97 | 44,1 | 6.000 – 6.500 | 152 – 165 | RY24-J49 | RG-D | ||
| 10RY-6500H | 113.5 | 51,6 | 6.500 – 7.000 | 165 – 178 | RY24-J49 | RG-D | ||
| 15RY-5000H | 107 | 48,6 | 5.000 – 5.500 | 127 – 140 | Hone Unit includes
1 set of 15 stones and 30 shoes |
RY24-J49 | RG-D | |
| 15RY-5500H | 122 | 55,4 | 5.500 – 6.000 | 140 – 152 | RY24-J49 | RG-D | ||
| 15RY-6000H | 147 | 66,8 | 6.000 – 6.500 | 152 – 165 | RY24-J49 | RG-D | ||
| 15RY-6500H | 172 | 78,2 | 6.500 – 7.000 | 165 – 178 | RY24-J49 | RG-D | ||

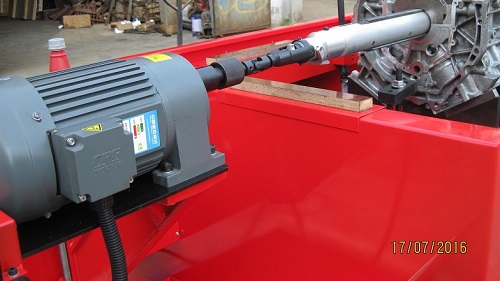

Line Honing Machine LH-100
PLB-100 line boring attachment
*38.1mm hard chrome bar with tool bit holes on127mm centers, length 1220mm.
*auto feed with 4 ranges, 0.05;0.1;0.15 and 0.2mm per revolution
*positive feed screw drive
*hand feed for thrust face matching
*spring load tool bit for easy adjustment
*universal mounting flange for various car and light truck applications
*Most V6&V8 blocks do not require universal mounts
*small block centering bushing standard
*lightweight 6.8kg plus bar
