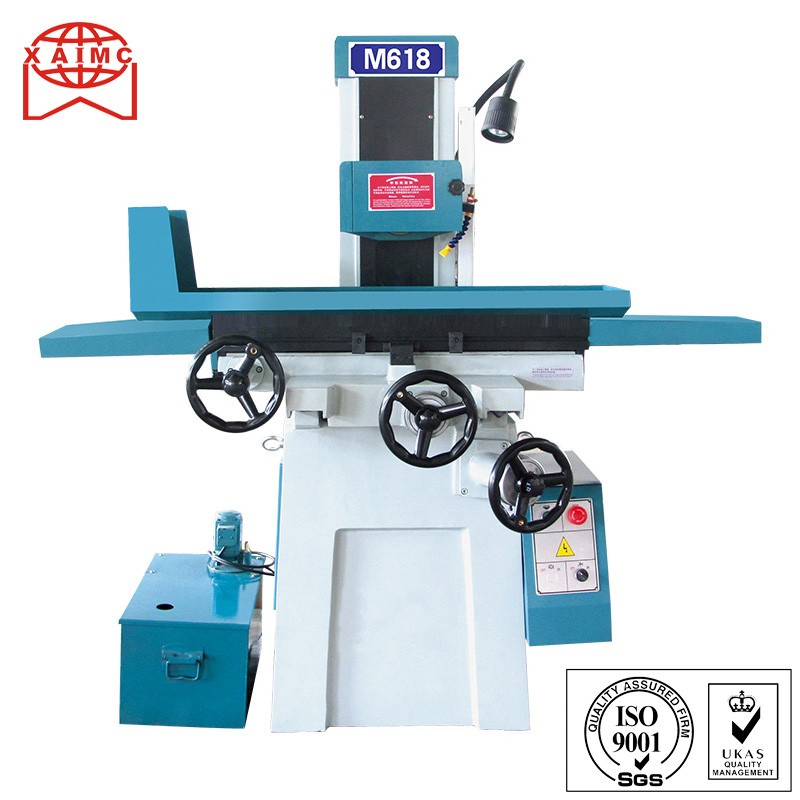

Characteristics of machine tools:
Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure,assembled in the greenhouse, and equipped with a completely waterproof mazy design in order to ensure the service life and the grinding of bearing surface roughness .Which marching with ball screw.
It has the advantages of compact structure, easy to operate.
A longitudinal guide rail worktable adopts rolling guide, rope wheel traction, light and flexible.
Machine parameters:
|
Technical Parameters
|
Unit
|
M618
|
|
|
Table maximum cutting area((L X Wx H )
|
mm
|
500*190*335
|
|
|
Working table movement
|
Max Grinding Length
|
mm
|
500
|
|
Max. Grinding width
|
mm
|
190
|
|
|
Distance From Table Surface To Spindle Center
|
mm
|
335
|
|
|
Slide way
|
|
V-type rall with steel-ball
|
|
|
Maximum work load
|
kg
|
200
|
|
|
Table size
|
mm
|
460*180
|
|
|
Number of T -Slot
|
mm*n
|
14*1
|
|
|
Table speed
|
m/min
|
3-23
|
|
|
Front and rear wheel feed
|
mm
|
0 02/Graduation 2.5/revolution
|
|
|
On the hand wheel feed
|
mm
|
0.01/Graduation 1.25/revolution
|
|
|
Wheel Size (diaXwidth X bore)
|
mm
|
180*13*31.75
|
|
|
Spindle speed |
50HZ
|
rpm
|
2800
|
|
Variable frequency motor (matching)
|
0–6000
|
||
|
Spindle motor
|
Kw
|
1.1
|
|
|
Cooling pump
|
Kw
|
0.04
|
|
|
Packing Size (LxWxH)
|
mm
|
1240*1080*1800
|
|
|
Cross,Net
|
T
|
0.75,0.65
|
|
