H.S.Classification ： Machinery & Electronics Machines for Working Metal 8461 Machine tools for planing, shaping, slotting, gear cutting etc.

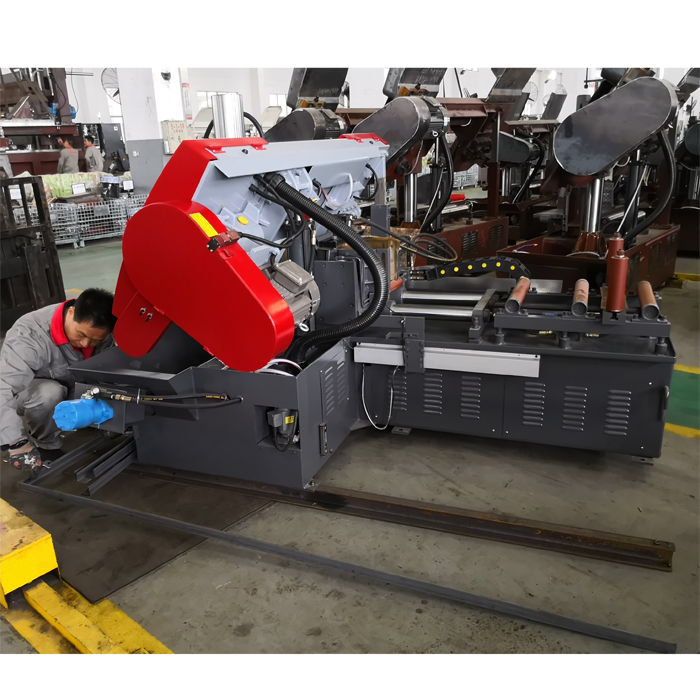

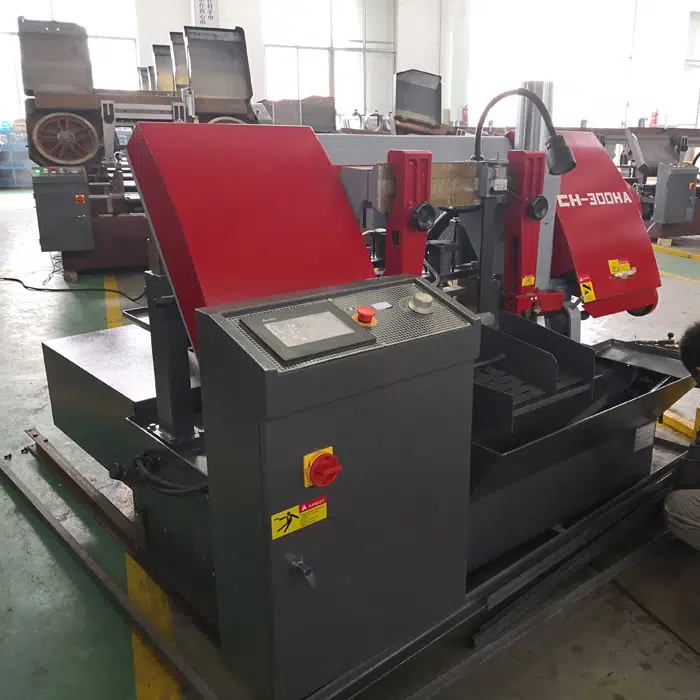

Product profile ： Metal Saw Cut Unicoresaws Bandsaw Machine
Main Features:
1. Hydraulic control of feeding speed of sawing/cutting, stepless speed regulation.
2. Manual or hydraulic clamping.
3. Small materials can be bundled cutting, with high efficiency.
4. Using antifriction bearing and hard alloy for guiding, thus prolonging service life of the saw blade.
2. Manual or hydraulic clamping.
3. Small materials can be bundled cutting, with high efficiency.
4. Using antifriction bearing and hard alloy for guiding, thus prolonging service life of the saw blade.

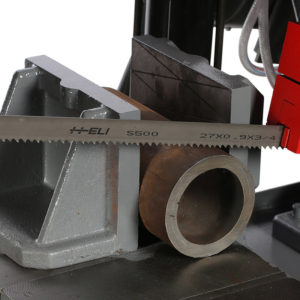

saw machine blade,saw band
|
Parameter
|

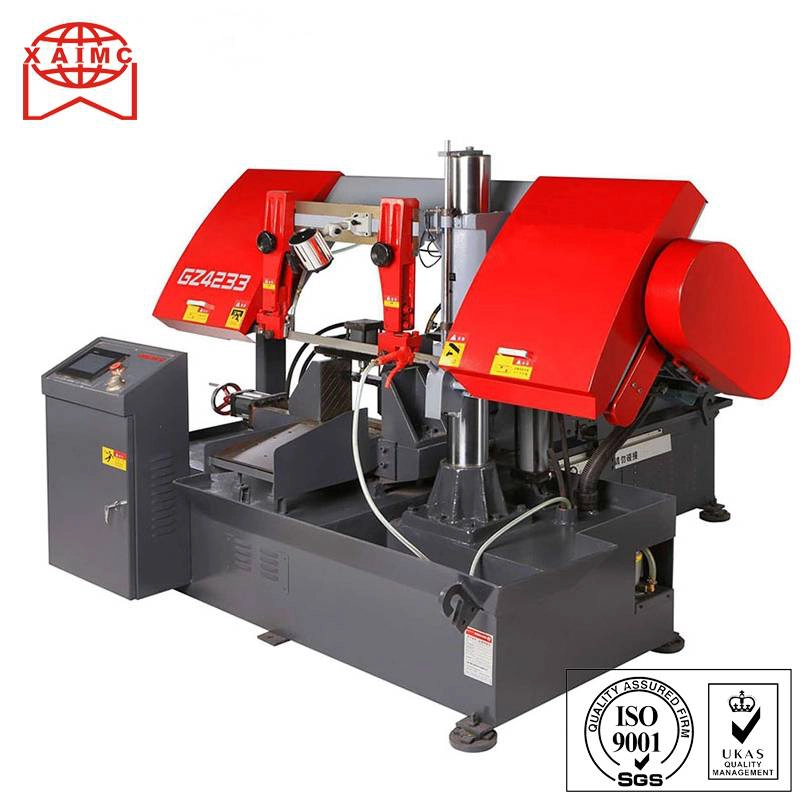

GZ4233
|
|
Sawing Capacity (mm)
|
Round material: 330 mm
Square material: 330X330mm
|
|
Band saw wire specifications (mm)
|
34×1.1×4115mm
|
|
Hydraulic motor (kw)
|
0.75
|
|
Work clamping method
|
Hydraulic
|
|
Band saw wire speed (m/min)
|
22/35/50/75m/min
|
|
Main motor power (kw)
|
4
|
|
Cooling pump (kw)
|
0.09
|
|
Saw blade tensioning method
|
Manual
|
