Valve Seat Boring Machine TX90/TL120/TL120XL

Modern modular machine bed design for improved rigidity. Computer enhanced static and dynamic characteristics provide The latest in machining technology.
New improved lighting system.
New table bars with pnevmatic locking.
Fully integrated spindle motor, Infinitely variable speed 0 to 1200 RPM, with sensorless Vector Flux Control. Forward and reverse directions. Extremely broad torque ratings from lowest RPM with constant torque spindle rotation. Digital RPM read-out for accurate speed setting.
Patented Workhead with triple Air-Float Automatic Centering System and built-in spindle motor. Greatly reduces the number of free-floating parts during the centering sequence.Results in minimal work-head inertia and maximal floatation for unmatched centering sensitivity.
High quality smooth, 3 tone paint work.

Description

Features :

TX90 High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor.

The TL120 offers the patented new Triple Air-Float Automatic Centering system and its high torque and powerful motorspindle. Very accurate, all-purpose machine to cut valve seats and ream valve guides. Extremely versatile this machine will cut valve seats from the smallest to the biggest diameter. Thanks to its lightweight floating system. It will machine cylinder heads of any size from micro-engines up to big stationary engines.
Featuring a machine bed structure optimized by static and dynamic calculation, with a modern, modular and functional design, it can accommodate either the tilting fixture (+42deg to -15deg) or the hydraulic 360deg roll-over fixture with lateral up-and-down system.
The TL120 has a benefit of air floating table bars. Thus adding faster setup time and effortless shifting of any size cylinder head. This feature decreases operator fatigue and increases productivity.
◆Machining capacity .55″/16mm to725″/120mm

valve seat machine — TL120 valve seat boring machine

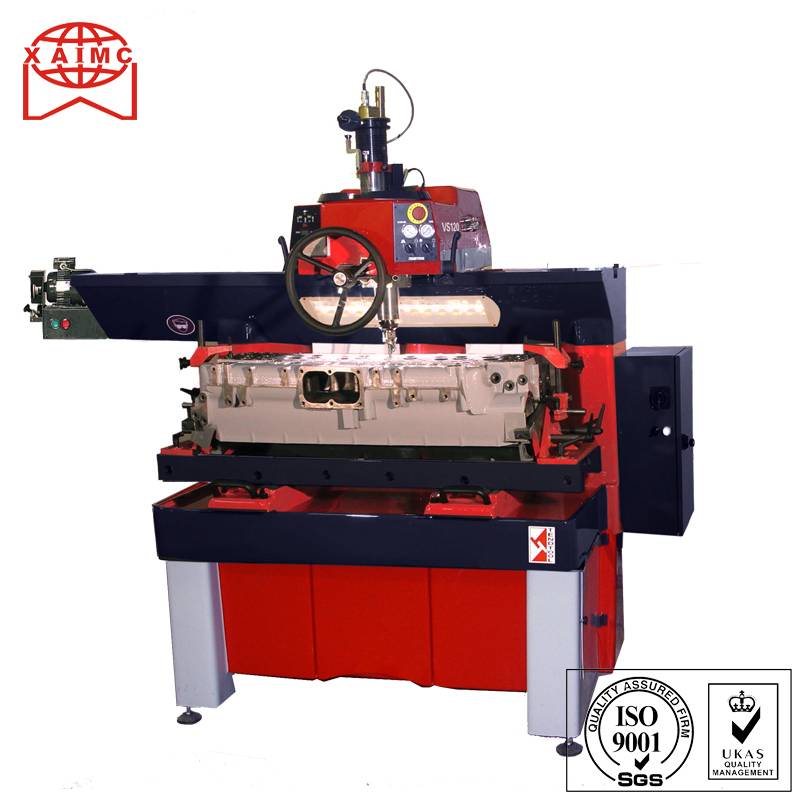

Heavy valve seat and guide machine TL120XL

Featuring the new generation of valve seat boring.Provides more than a 30% decrease of cutting forces during Machining. Angular accuracy within ±0.5 degree guaranteed on multi-angle cutter.
Machining capacity from 0.6″/16 mm to 4.7 “/120 mm.

TECHNICAL FEATURES:

Machine capabilities	Unit	TX90	TL120	TL120XL
Max. length of the cylinder head	mm/inch	990/39	1440/56.69	2400/94.48
Max. width of the cylinder head	mm/inch	500/19.7	500/19.7	500/19.7
Max. height of the cylinder head	mm/inch	450/17.7	450/17.7	550/21.65
Crosswise work piece tilting	degrees	+45° to -15°	+45° to -15°	+45~-15
Maximum table horizontal travel(mm)	mm/inch	16-90/0.6-3.6	160/4.3	160/4.3
Machining capacity dia.(min-max)	Φmm/inch	14-90/0.55-3.5	16/120/0.6-4.7	16~120/0.63~4.72
Work head displacement
Lengthwise	mm/inch	930/37	930/37	990/39
Crosswise	mm/inch	40/1.6	40/1.6	40/1.6
Sphere-Cylinder travel	mm/inch	9/0.4	9/0.4	250/9.8
Spindle		200/8
Max. spindle incination	degrees	5	5	5
Spindle travel	mm/inch	200/8	200/8	250/9.8
Power of the spindle	Kw	1.5	1.5	2.2
Spindle rotation speed	rpm	0-1000	0-1000	0~1200
Alimentations
Electric supply	V	380V/50Hz 3ph or 220V/60Hz/3ph	380V/50Hz 3ph or 220V/60Hz/3ph	380V/50Hz 3ph or 220V/60Hz/3ph
Air pressure	bar/psi	6-87	6-87	6/87
Max. air flow	1/mn-CFM	300/11	300/11	300/11
Level of noise at 400 RPM	dba	73	72	72
Level of noise at 1200RPM	dba	82	82	82
Net weight (approx.)	kg/lbs	1050/2310	1400/3086	1550/3417 \| 1450/3197
Machine space requirements
Length	mm/inch	1440/56.7	1750/68.9	2250/89
Width	mm/inch	1050/41.3	1150/45.3	1150/45
Height	mm/inch	2170/85.4	2200/86.6	2280/86.6
