Specification
JMD-26XY Russia JET universal milling machine1.jet milling machine XZ6326B is a kind of drilling and milling machine. It has widely application.
2.X,Y automatic feed,Z lifting motor, head swivel +/-45 degrees,ram swivel 180 degrees.
| unit | XZ6326B | |
| Table size | mm | 1120X260 |
| T slot | no | 3/14/63 |
| Max. load of Table | kg | 250 |
| table Longitudinal travel(manual/auto) | mm | 600 |
| table Cross travel (manual/auto) | mm | 300 |
| table Vertical travel(manual/auto) | mm | 380 |
| Spindle taper | ISO40 | |
| spindle speed /step — Vertical | rpm | 67-2010/12steps |
| –Horizontal | rpm | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| quill travel | mm | 120 |
| swivel angle of headstock | degree | ±45º |
| vertical spindle axis to column surface | mm | 220-760 |
| vertical spindle nose to table surface | mm | 115-430 |
| horizontal spindle axis to table surface | mm | 0-380 |
| horizontal spindle axis to ram bottom | mm | 175 |
| ram travel | mm | 520 |
| Longitudinal/cross feed | mm / min | 24-402/9steps |
| Vertical/step | mm/min | 422/1step |
| Longitudinal/cross rapid speed | mm / min | 402 |
| Rapid Traverse vertical | mm/min | 422 |
| automatic spindle feed | 0.1/0.15/0.3 | |
| main motor | kw | 1.5/2.2(V),2.2(H) |
| feed motor | kw | 0.37(X/Y),0.75(Z) |
| coolant motor | kw | 0.04 |
| overall dimension | cm | 158X145X215 |
| N/W,G/W | kg | 1350/1500 |

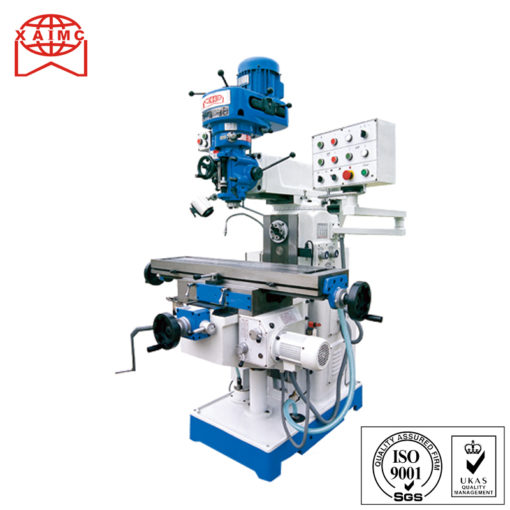

XZ6326B (JMD-26XY) China Russia JET universal milling machine is light duty universal machine tools. It’s suitable for drilling, milling and tapping metals and some other materials which are easy to be processed.
This model is X,Y auto feed, Z is with lifting motor. It’s equipped with working lamp,cooling, lubrication.Its milling head can swivel +/-45 degrees. You can equip different optional accessories according to your inquiry.
Quality inspection
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal
machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,
Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic
powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality
control.
We will test every machines carefully in different status by our professional engineers to make sure our machines
quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will
make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines’
quality.
Optional accessories
XZ6326B (JMD-26XY) China Russia JET universal milling machine can be equipped with many accessories to carry out different works.Mostly, the machine can be equipped with machine vice, rotary table,dividing head etc.You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
